PIPELINE END MANIFOLD (PLEM) – SUBSEA PIPELINE

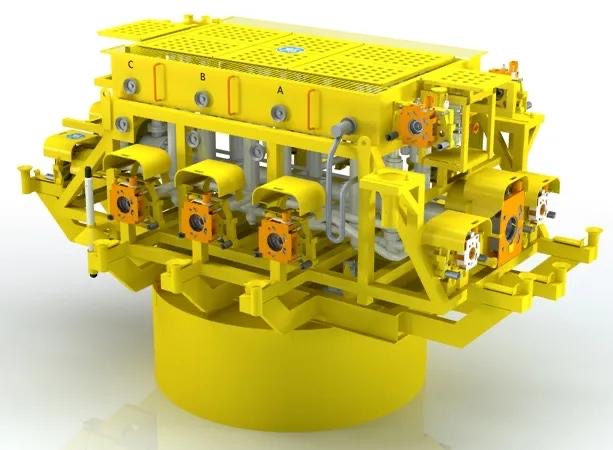

A Pipeline End Manifold (PLEM) is a specialized subsea pipeline structure designed to provide a secure connection and controlled distribution of fluids between offshore pipelines, subsea wells, flowlines, risers, and other subsea production or injection equipment. The PLEM serves as a central connection point within an offshore pipeline system, allowing production fluids or injection fluids to be routed safely and efficiently between different pipeline sections and subsea facilities.

The system typically consists of high-pressure piping, isolation and control valves, pipeline connectors, flanges, hubs, structural supports, and other associated subsea components. Depending on the project requirements, the manifold may also incorporate instrumentation and monitoring equipment for pressure, temperature, and flow conditions.

PLEMs are engineered to withstand demanding offshore and deepwater operating conditions, including high external pressure, corrosion, marine exposure, temperature variations, and mechanical loads. They are commonly fabricated from materials and protective systems selected according to the operating pressure, fluid characteristics, water depth, design life, and applicable offshore engineering standards.

The Pipeline End Manifold provides an efficient and reliable interface between subsea pipeline infrastructure and offshore production systems. Its design enables controlled flow management, pipeline isolation, maintenance operations, and integration with wider subsea field development systems. Proper engineering, fabrication, testing, installation, and inspection are essential to ensure long-term integrity and safe operation throughout the service life of the subsea pipeline system.
